HYDROPHILIC WATER STOP

SHANGHAI KWONGFAT TRADING CO., LIMITED

HYPER STOP  DB series

A complete Range of High Performance

                                                                            Hydrophilic Waterstop



Uses

A flexible butyl rubber and swellable clay waterproofing compound that swells upon contact with water to form a long-lasting compression seal in non-moving concrete joints. HYPER STOP requires a 2-inch minimum clear



coverage from the face of the concrete. HYPER STOP is used primarily for foundation walls slabs, slabs-on-grade, precast wall panels, manholes, pipe connections, box culverts, utility and burial valuts, wet wells, and portable water tanks.

Advantage



Easy to install by bonding nailing or casting into joint face. Factory made connectors enable full integration of swellable and exciting waterstop networks.

Swelling properties uneffected by long term wet/dry cycling.

Sustains effective seal in wet conditions.

Description



HYPER STOP is high performance hydrophilic bentonite waterstop.

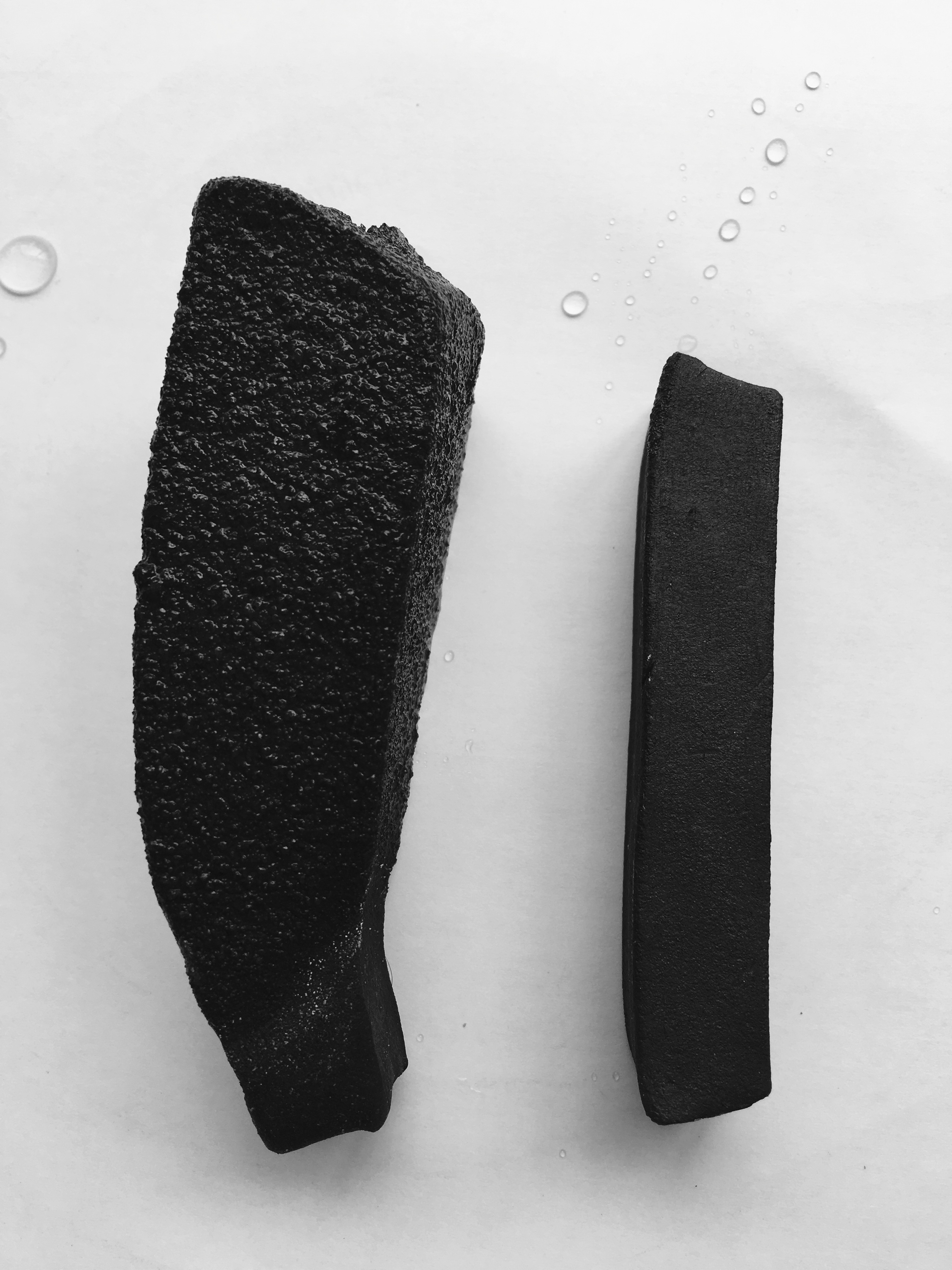

HYPER STOP is made high performance modified bentonite strips. The swelling action is the result between water and hydrophilic groups which are part of the HYPER STOP molecular structure. Expansion of the waterstop creates a positive seal against the face of the concrete joint and prevents the water entry into the structure through the protected joint.

Technical support



Provides a technical advisory service for on-site assistance and device on curning membrane selection, evalulation trials dispensing equipment. Technical date and guidance can be provided for HYPER STOP and other products for in the construction.



Application instructions



The waterstop may be installed either into a groove cast in the concrete or directly onto the concrete surface. Full application instructions, including the use of the ancillary products, are contained in a separate application leaflet which is available on request.

Swelling Chart and Installatio

500

400

300

200

100

1day 2day 3day 4day 5day







Test item				Test result				Test method
Specific gravity at 25oC				1.35
Heat-resistance Test
Varition Rate of Length				±5%
Deformity of Appearance				No Abnormality				ASTM D-71
Cold-resistance Test				No Abnormality
Color					Black
Expansion volume rate				250%

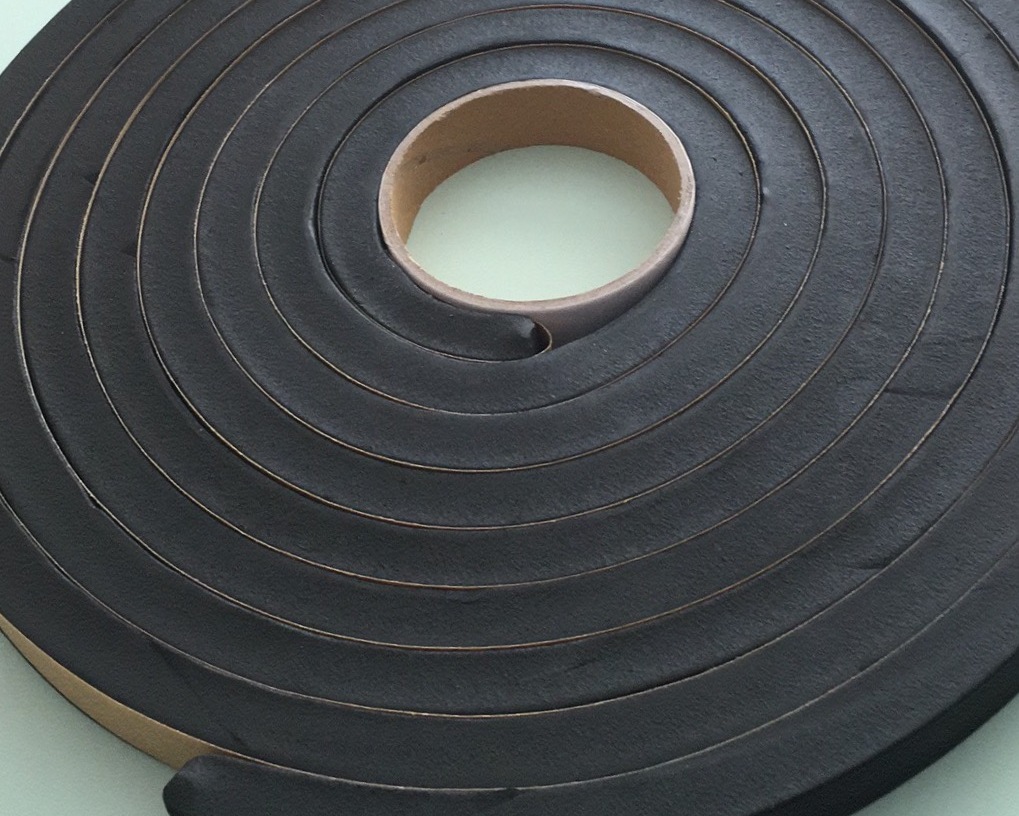

				DB-2015, (N) : 20mm X 15mm (5m X 7 roll/box)
Size				DB-2515, (N) : 25mm X 15mm (5m X 6 roll/box)
				DB-2519, (N) : 25mm X 19mm (5m X 6 roll/box)
				(N) option : center fiber net insert.
